54421193 5HP Air Compressor Motor Replacement for Ingersoll Rand, Single Phase, 184T Frame, Open Drip Proof Enclosure, 5Hp Output, 3450RPM, 60Hz, 208-230V, 23378805 Mixizap
4.4 (16 items)
Limited Time Sale$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 213620276 | Release Date | 2026/04/12 | List Price | $36.00 | Model Number | 213620276 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Part Numbers56283138233788052322006454421193SpecificationsPower 5 HP SPLFLA 24.9SFA 27.3RPM: 3450Frame: 184TShaft Size: 7/8" x 2 1/4" with KeywayShaft height: 4.5" (Measured to Shaft Center)Base: Flat Rigid Mounting BaseVoltage: 208-230V 60hz, 24.9 AMPSPhase: Single PhaseService Factor: 1.15Insulation Class BBall BearingsOpen Drip Proof EnclosureManual Overload ProtectionFeaturesHigh starting torque design for compressor duty applications.Overload protection with manual reset.Steel frame and base.Welded base. Capacitor start/capacitor run.NoteProfessional installation is highly recommended.Suggestions for use. 1. Turn the shaft by hand to see if the motor shaft can rotate normally. 2. Don't run with load first, run the machine for a few minutes, everything is normal and then take the load.3. When running with a load, it is best to use an ammeter to measure the actual running current, to see if there is more than the rated value marked on the nameplate.
- 【Powerful 5HP Electric Motor】: This 5HP motor delivers strong performance with 3450 RPM high-speed operation, ensuring quick starts and maximum efficiency for heavy-duty equipment. Ideal for air compressors and industrial applications requiring reliable power
- 【Specifications】: Power 5 HP; FLA 24.9; SFA 27.3; RPM: 3450; Frame: 184T; Shaft Size: 7/8" x 2 1/4" with Keyway; Shaft height: 4.5" (Measured to Shaft Center); Base: Flat Rigid Mounting Base; Voltage: 208-230V 60hz, 24.9 AMPS; Phase: Single Phase Service Factor: 1.15
- 【Part Number】: 56283138, 23378805, 23220064, 54421193. Note: The air compressor motor is specially used for air compressors. Please purchase the motor according to the specific parameters you need, and professional installation is recommended

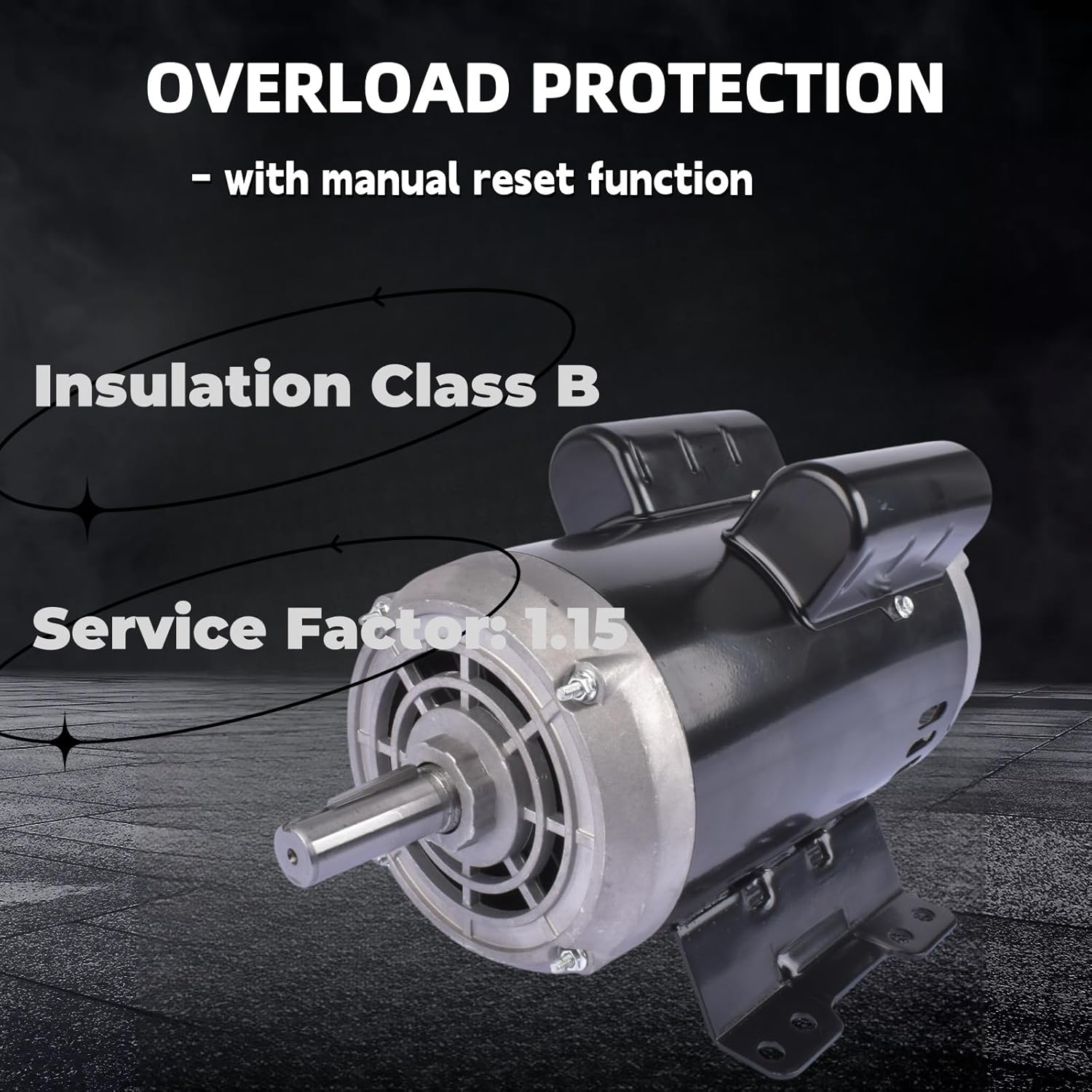

- 【Specificities】: Insulation class B; ball bearings; open drip-proof housing; manual overload protection for relatively clean and dry environments
- 【Outstanding Durability】: As a general-purpose heavy-duty motor made of iron, this motor is carefully designed to withstand long-term use and harsh environments, ensuring long-lasting durability
| Voltage | 230 Volts |
|---|---|
| Brand Name | Mixizap |
| Horsepower | 5 Horsepower |
| Unit Count | 1.0 Count |
| Item Weight | 21.6 Kilograms |
| Manufacturer | Mixizap |
| Material Type | Iron |
| Included Components | Air Compressor Electric Motor |
